CURRENCY COUNTERS AND

CURRENCY SORTERS

Now do more than just counting notes, also detect counterfeit or fake notes. Equipped with the latest detection & identification sensors, accurate & smooth processing, quick counting and intelligent features, PILOT’s range of currency counters is one security measure that you should invest in. With a stunning design and exceptional performance, now you can quickly and easily count notes as well as detect fake notes to protect your business transactions.

CURRENCY

COUNTERS AND
CURRENCY SORTERS

Now do more than just counting notes, also detect counterfeit or fake notes. Equipped with the latest detection & identification sensors, accurate & smooth processing, quick counting and intelligent features, PILOT’s range of currency counters is one security measure that you should invest in. With a stunning design and exceptional performance, now you can quickly and easily count notes as well as detect fake notes to protect your business transactions.

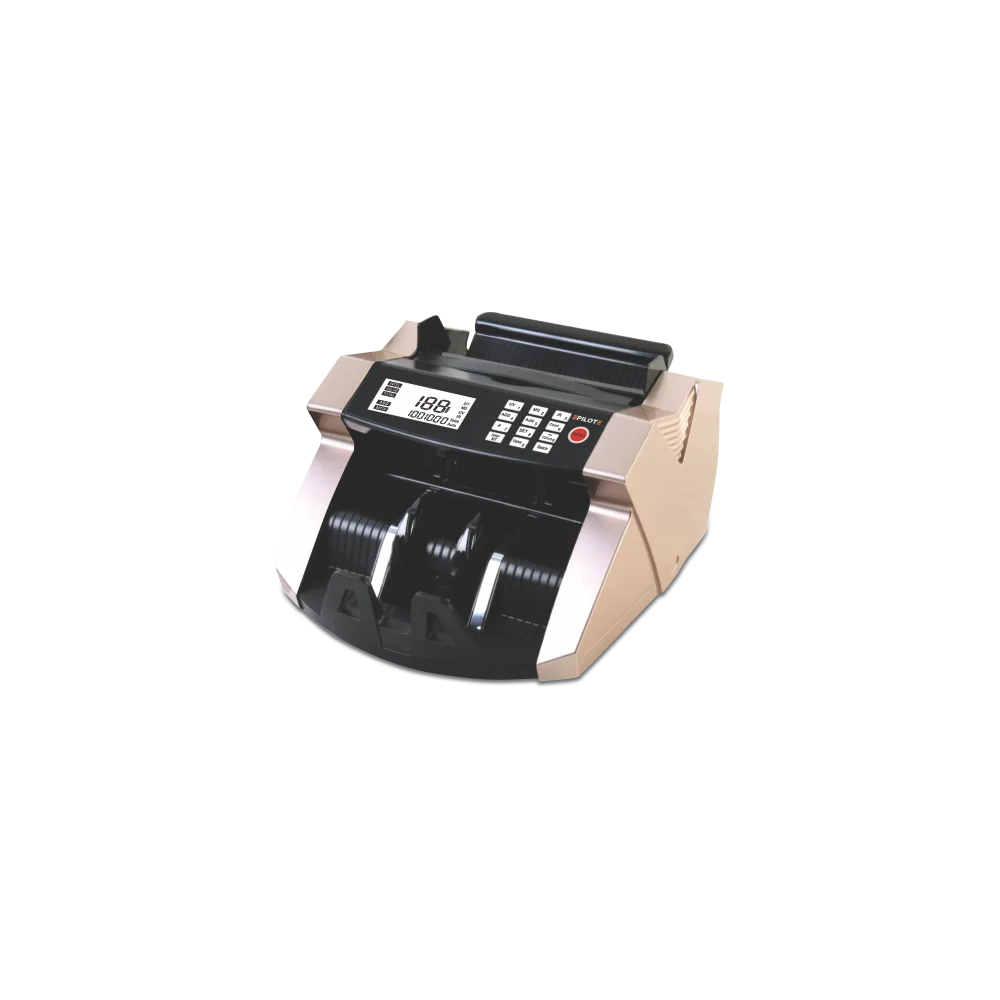

Manual Value Counter

C-10 UV/MG

The PILOT C10-UV/MG comes with an LCD display, auto start/stop, counting, clearing, batching, adding & self-examination functions. IR (Infrared Ray), UV (Ultraviolet) and MG (Magnetic) sensors automatically identify and detect fake notes, double notes and half notes.

FEATURES:

Automatic note detection with IR (Infrared Ray), UV (Ultraviolet) & MG (Magnetic) sensors
LCD Screen and voice notification along with error code on detection of fake or suspected notes
Manual value counting mode for only single denomination notes
Rear port to connect external display screen
Sound on/off setting

TECHNICAL DATA

MODEL	C-10UV/MG
Counting Speed	>1000 notes/min
Net Weight	5 Kg
Power Supply	AC 220V 50-60Hz
Power Consumption	<60W
Product Dimensions (H,W,D)	190 x 250 x 310 mm

Download Catalogue

AREAS OF APPLICATION

Corporate & Commercial Offices	Banking & Financial Institution
Government Financial Institutions	Religious Establishments
Transport & Logistics

Manual Value Counter

C-10 UV/MG

The PILOT C10-UV/MG comes with an LCD display, auto start/stop, counting, clearing, batching, adding & self-examination functions. IR (Infrared Ray), UV (Ultraviolet) and MG (Magnetic) sensors automatically identify and detect fake notes, double notes and half notes.

FEATURES:

Automatic note detection with IR (Infrared Ray), UV (Ultraviolet) & MG (Magnetic) sensors
LCD Screen and voice notification along with error code on detection of fake or suspected notes
Manual value counting mode for only single denomination notes
Rear port to connect external display screen
Sound on/off setting

AREAS OF APPLICATION

Corporate & Commercial Offices	Banking & Financial Institutions	Government Financial Institutions
Religious Establishments	Transport & Logistics

TECHNICAL DATA

MODEL	C-10UV/MG
Counting Speed	>1000 notes/min
Net Weight	5 Kg
Power Supply	AC 220V 50-60Hz
Power Consumption	<60W
Product Dimensions (H,W,D)	190 x 250 x 310 mm

Download Catalogue

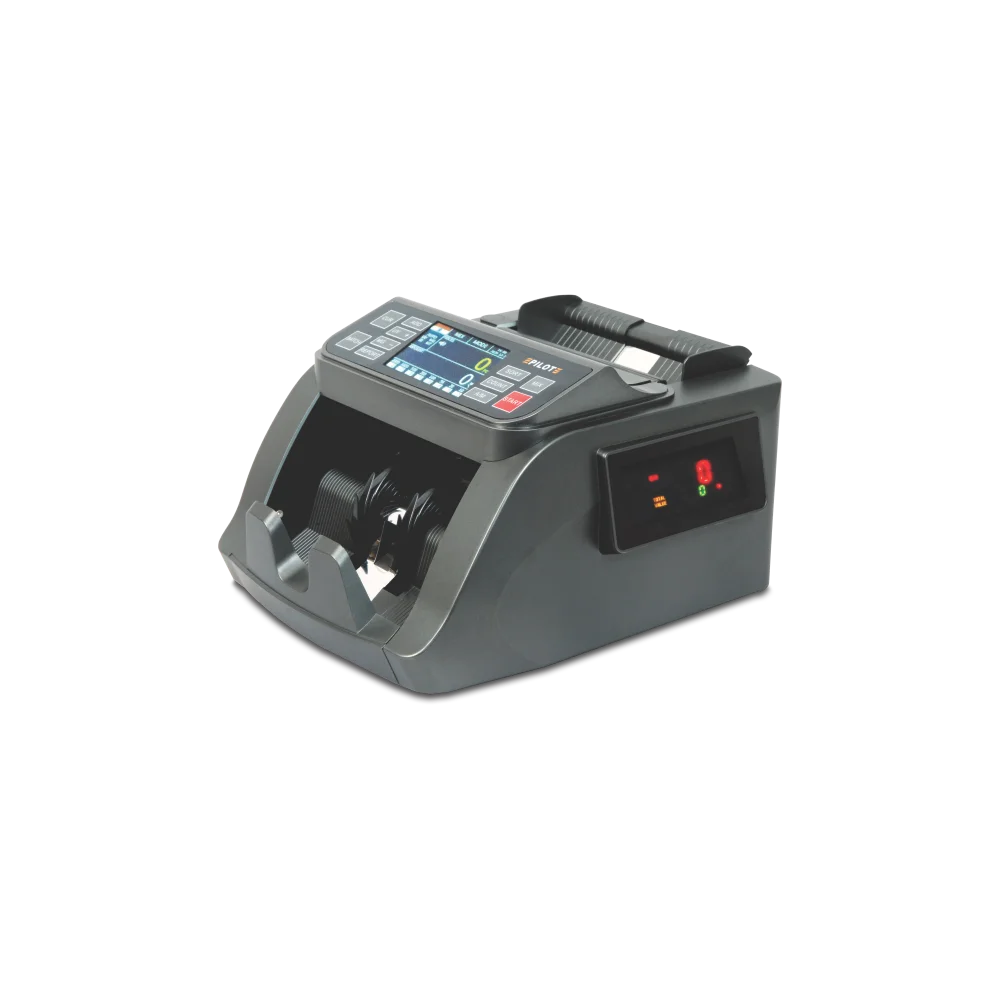

Mixed Value Counter

CV-70

UV/MG/IR

The PILOT CV-70UV/MG/IR comes with a dual screen display; front TFT color screen & side LED Screen, auto start/stop, mixed note value counting, clearing, batching, adding & self-examination functions. IR (Infrared Ray), UV (Ultraviolet) and MG (Magnetic) sensors automatically identify and detect fake notes, double notes and half notes.

FEATURES:

Intelligent design with front TFT Color Screen and side LED screen.
Automatic note detection with IR (Infrared Ray), UV (Ultraviolet), MG (Magnetic) sensors
Display screen and voice notification on detection of fake or suspected notes
Alarm sound and error code notification for fake notes, double notes, chained-notes, half notes, damaged notes.
Automatic mix value counting with multiple denomination display.
Denomination sort function based on first banknote
Sound on/off setting
Software updates for new banknotes.

TECHNICAL DATA

MODEL	CV-70UV/MG/IR
Counting Speed	>1000 notes/min
Net Weight	6 Kg
Power Supply	AC220V/50Hz AC110V/60Hz
Power Consumption	<75W
Product Dimensions (H,W,D)	190 x 310 x 290 mm

Download Catalogue

AREAS OF APPLICATION

Corporate & Commercial Offices	Banking & Financial Institution
Government Financial Institutions	Religious Establishments
Transport & Logistics

Mixed Value Counter

CV-70UV/MG/IR

The PILOT CV-70UV/MG/IR comes with a dual screen display; front TFT color screen & side LED Screen, auto start/stop, mixed note value counting, clearing, batching, adding & self-examination functions. IR (Infrared Ray), UV (Ultraviolet) and MG (Magnetic) sensors automatically identify and detect fake notes, double notes and half notes.

FEATURES:

Intelligent design with front TFT Color Screen and side LED screen.
Automatic note detection with IR (Infrared Ray), UV (Ultraviolet), MG (Magnetic) sensors
Display screen and voice notification on detection of fake or suspected notes
Alarm sound and error code notification for fake notes, double notes, chained-notes, half notes, damaged notes.
Automatic mix value counting with multiple denomination display.
Denomination sort function based on first banknote
Sound on/off setting
Software updates for new banknotes.

AREAS OF APPLICATION

Corporate & Commercial Offices	Banking & Financial Institutions	Government Financial Institutions
Religious Establishments	Transport & Logistics

TECHNICAL DATA

MODEL	CV-70UV/MG/IR
Counting Speed	>1000 notes/min
Net Weight	6 Kg
Power Supply	AC220V/50Hz AC110V/60Hz
Power Consumption	<75W
Product Dimensions (H,W,D)	190 x 310 x 290 mm

Download Catalogue

Bundle Currency Counter

CBT-30

A table top mounted state of the art heavy duty machine equipped with an LED display and feather touch keypad for effortless operation. A cut-off system for protection against voltage fluctuations and a unique dust removing system which enhances counting accuracy.

MODES OF OPERATION:

• Check Mode – Check nos as per pre-set value

• Free Mode – Count all notes placed in stacker

• Batch Mode – Count in batches

• Stamp Mode – Stamp OK after checking

AREAS OF APPLICATION

Corporate & Commercial Offices	Banking & Financial Institutions	Government Financial Institutions
Religious Establishments	Transport & Logistics

TECHNICAL DATA

MODEL	CBT-30 ((Table Top)
Counting Mechanism	Vacuum
Dimensions (WxDxH)	330 x 420 x 240 mm
Weight (approx.)	35 kg
Counting Speed / 100 Notes	4 sec. approx.
Size Range of Documents (mm)	Min: 45 x 100 Max: 100 x 420 Thickness: 0.04mm x 0.18mm
Notes Capacity (max.)	150 notes
Power Consumption	380 W
Power Source	AC 230V 10%; 50Hz
Type of Notes	Stapled / Banded
Dual LED Display	4/3 digits

Download Catalogue

Bundle Currency Counter

CBT-30

A table top mounted state of the art heavy duty machine equipped with an LED display and feather touch keypad for effortless operation. A cut-off system for protection against voltage fluctuations and a unique dust removing system which enhances counting accuracy.

MODES OF OPERATION:

• Check Mode – Check nos as per pre-set value

• Free Mode – Count all notes placed in stacker

• Batch Mode – Count in batches

• Stamp Mode – Stamp OK after checking

TECHNICAL DATA

MODEL	CBT-30 ((Table Top)
Counting Mechanism	Vacuum
Dimensions (WxDxH)	330 x 420 x 240 mm
Weight (approx.)	35 kg
Counting Speed / 100 Notes	4 sec. approx.
Size Range of Documents (mm)	Min: 45 x 100 Max: 100 x 420 Thickness: 0.04mm x 0.18mm
Notes Capacity (max.)	150 notes
Power Consumption	380 W
Power Source	AC 230V 10%; 50Hz
Type of Notes	Stapled / Banded
Dual LED Display	4/3 digits

Download Catalogue

AREAS OF APPLICATION

Corporate & Commercial Offices	Banking & Financial Institution
Government Financial Institutions	Religious Establishments
Transport & Logistics

Bundle Currency Counter

CBF-30

A floor standing state of the art heavy duty machine equipped with an LED display and feather touch keypad for effortless operation. A cut-off system for protection against voltage fluctuations and a unique dust removing system which enhances counting accuracy.

MODES OF OPERATION:

• Check Mode – Check nos as per pre-set value

• Free Mode – Count all notes placed in stacker

• Batch Mode – Count in batches

• Stamp Mode – Stamp OK after checking

AREAS OF APPLICATION

Corporate & Commercial Offices	Banking & Financial Institutions	Government Financial Institutions
Religious Establishments	Transport & Logistics

TECHNICAL DATA

MODEL	CBF-30 (Floor Standing)
Counting Mechanism	Vacuum
Dimensions (WxDxH)	450 x 300 x 790 mm
Weight (approx.)	47 kg
Counting Speed / 100 Notes	4 sec. approx.
Size Range of Documents (mm)	Min: 45 x 100 Max: 100 x 420 Thickness: 0.04mm x 0.18mm
Notes Capacity (max.)	150 notes
Power Consumption	380 W
Power Source	AC 230V 10%; 50Hz
Type of Notes	Stapled / Banded
Dual LED Display	4/3 digits

Download Catalogue

Bundle Currency Counter

CBF-30

A floor standing state of the art heavy duty machine equipped with an LED display and feather touch keypad for effortless operation. A cut-off system for protection against voltage fluctuations and a unique dust removing system which enhances counting accuracy.

MODES OF OPERATION:

• Check Mode – Check nos as per pre-set value

• Free Mode – Count all notes placed in stacker

• Batch Mode – Count in batches

• Stamp Mode – Stamp OK after checking

TECHNICAL DATA

MODEL	CBF-30 (Floor Standing)
Counting Mechanism	Vacuum
Dimensions (WxDxH)	450 x 300 x 790 mm
Weight (approx.)	47 kg
Counting Speed / 100 Notes	4 sec. approx.
Size Range of Documents (mm)	Min: 45 x 100 Max: 100 x 420 Thickness: 0.04mm x 0.18mm
Notes Capacity (max.)	150 notes
Power Consumption	380 W
Power Source	AC 230V 10%; 50Hz
Type of Notes	Stapled / Banded
Dual LED Display	4/3 digits

Download Catalogue

AREAS OF APPLICATION

Corporate & Commercial Offices	Banking & Financial Institution
Government Financial Institutions	Religious Establishments
Transport & Logistics

PILOT-2101

(Currency Sorting Machine)

The PILOT-2101 Currency Sorter is magnificently designed with advanced & intelligent sensors such as Light Image, Spectrum Image, IR (Infrared Ray) Image, Infrared Optical Characteristics, UV (Ultraviolet) Optical Characteristics, MG (Magnetic) Characteristics, Fluorescence, Metal Thread & Serial Number Detection, Digital Encoding & Multipoint Thickness Measurement. The identification and control system adopts FPGA+, multiple DSP structure and Multi-Core parallel processing. Handles up to 50,000 banknotes per hour and currencies like USD, EUR, GBP, INR, etc.

TECHNICAL DATA

MODEL	PILOT-2101
Available Currency	As per requirement
Sorting Speed	>800 pcs/min
Hopper Capacity	500 pcs
Pocket Capacity	200 pcs
Rejecting Bill Capacity	100 pcs
PC Interface	RS-232 Serial Port
Rated Voltage	220V (+/-10%) or as required
Frequency	50Hz (+/-5%)
Power	<=90W
Rising Temperature	<=20C
Dimensions (WxDxH)	300 x 300 x 360 mm
Weight (approx.)	18 kg

Download Catalogue

AREAS OF APPLICATION

Corporate & Commercial Offices	Banking & Financial Institutions
Government Financial Institutions	Religious Establishments
Transport & Logistics

PILOT-2101

(Currency Sorting Machine)

The PILOT-2101 Currency Sorter is magnificently designed with advanced & intelligent sensors such as Light Image, Spectrum Image, IR (Infrared Ray) Image, Infrared Optical Characteristics, UV (Ultraviolet) Optical Characteristics, MG (Magnetic) Characteristics, Fluorescence, Metal Thread & Serial Number Detection, Digital Encoding & Multipoint Thickness Measurement. The identification and control system adopts FPGA+, multiple DSP structure and Multi-Core parallel processing. Handles up to 50,000 banknotes per hour and currencies like USD, EUR, GBP, INR, etc.

AREAS OF APPLICATION

Religious Establishments	Transport & Logistics
Government Financial Institutions	Corporate & Commercial Offices
Banking & Financial Institutions

TECHNICAL DATA

MODEL	PILOT-2101
Available Currency	As per requirement
Sorting Speed	>800 pcs/min
Hopper Capacity	500 pcs
Pocket Capacity	200 pcs
Rejecting Bill Capacity	100 pcs
PC Interface	RS-232 Serial Port
Rated Voltage	220V (+/-10%) or as required
Frequency	50Hz (+/-5%)
Power	<=90W
Rising Temperature	<=20C
Dimensions (WxDxH)	300 x 300 x 360 mm
Weight (approx.)	18 kg

Download Catalogue
