In today’s fast-paced business environment, managing cash efficiently is crucial. Whether you’re a retail outlet, bank, logistics provider, or government office, cash handling accuracy is non-negotiable. PILOT’s advanced currency counters and sorters go beyond just counting—they detect counterfeit notes, ensure accurate denomination sorting, and enhance operational efficiency with cutting-edge technology.
Why Choose PILOT Currency Counting Solutions?
- Counterfeit Detection – Equipped with IR (Infrared), UV (Ultraviolet), and MG (Magnetic) sensors.
- Faster Operations – Count more than 1000 notes per minute.
- Error-Free Processing – Intelligent detection for double notes, chained notes, and torn or half notes.
- User-Friendly Displays – TFT color screens, voice alerts, external display support.
- Multi-Denomination Sorting – Sort different note values in one go.
1. C-10 UV/MG Currency Counter
An intelligent note counter with LCD display and automatic counterfeit detection, ideal for retail and office use.
Key Features:
- Auto start/stop, add, batch & self-checking functions.
- Detects fake, half, or double notes with IR, UV & MG sensors.
- Rear port for external display connection.
Technical Specifications:
| Model | C-10UV/MG |
| Counting Speed | >1000 notes/min |
| Net Weight | 5 Kg |
| Power Supply | AC 220V 50-60Hz |
| Consumption | <60W |
| Dimensions | 190 x 250 x 310 mm |

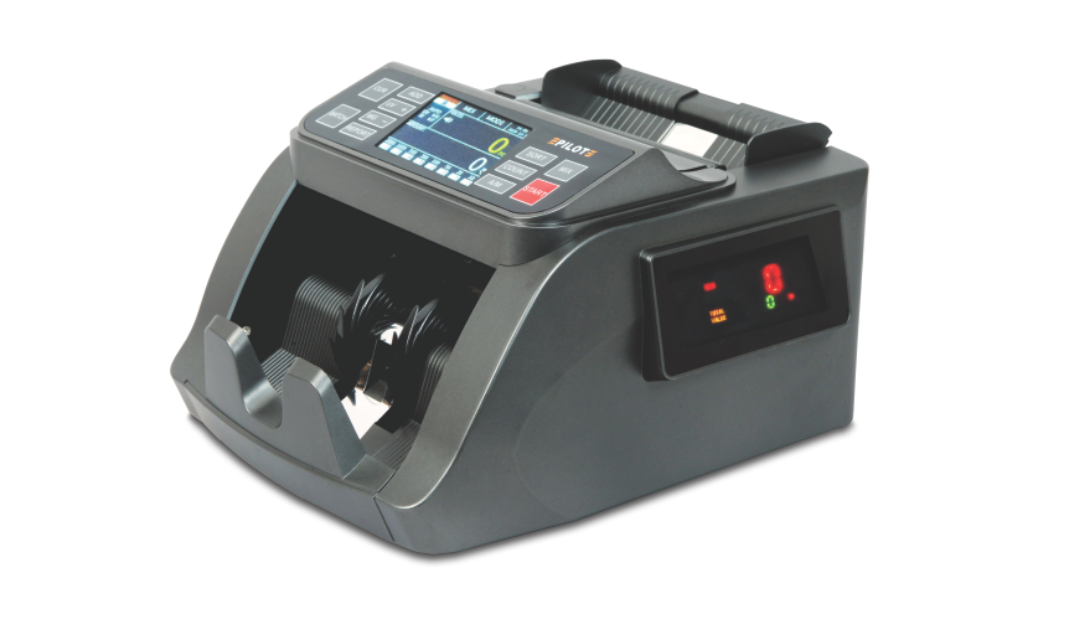

2. CV-70 UV/MG/IR Mixed Value Counter
Perfect for handling mixed currency denominations, this machine displays total value and offers advanced security features.
Key Features:
- Mixed note value counting with denomination sorting.
- Dual screen: TFT color front display + side LED.
- Voice notification, error code display, and sound alert for fake notes.
Technical Specifications:
| Model | CV-70UV/MG/IR |
| Counting Speed | >1000 notes/min |
| Net Weight | 6 Kg |
| Power Supply | AC220V/50Hz, AC110V/60Hz |
| Consumption | <75W |
| Dimensions | 190 x 310 x 290 mm |
3. CBT-30 Bundle Currency Counter (Table Top)
Engineered for heavy-duty usage, this tabletop model counts banded or stapled bundles with precision.
Key Features:
- Vacuum-based counting with feather-touch keypad.
- Dual LED display, voltage cut-off, and dust removing system.
- Modes: Free, Check, Batch, Stamp.
Technical Specifications:
| Model | CBT-30 |
| Counting Mechanism | Vacuum |
| Speed/100 Notes | ~4 seconds |
| Weight | ~35 Kg |
| Dimensions | 330 x 420 x 240 mm |
| Power | 380W |
| Capacity | 150 notes |
4. CBF-30 Bundle Counter (Floor Model)
A floor-standing bundle counter for high-volume environments like banks and government offices.
Key Features:
- Same precision and features as CBT-30 but with larger build.
- Stable and robust structure for continuous operation.
Technical Specifications:
| Model | CBF-30 |
| Counting Mechanism | Vacuum |
| Speed/100 Notes | ~4 seconds |
| Weight | ~47 Kg |
| Dimensions | 450 x 300 x 790 mm |
| Power | 380W |
| Capacity | 150 notes |
5. PILOT-2101 Currency Sorting Machine
A sophisticated machine for financial institutions with multi-sensor detection and high-speed sorting.
Key Features:
- Detects UV, IR, MG, Spectrum Image, Metal Thread, Fluorescence & Serial Numbers.
- Sorts up to 50,000 notes per hour.
- Multi-core DSP and FPGA+ processing architecture.
Technical Specifications:
| Model | PILOT-2101 |
| Sorting Speed | >800 pcs/min |
| Hopper Capacity | 500 pcs |
| Pocket Capacity | 200 pcs |
| Reject Capacity | 100 pcs |
| Voltage | 220V (+/-10%) |
| Power | ≤90W |
| Weight | ~18 Kg |
| Dimensions | 300 x 300 x 360 mm |
Industries We Serve
- Banks & Financial Institutions
- Corporate & Commercial Offices
- Transport & Logistics Firms
- Government Financial Departments
- Religious Organizations
Enhance Cash Security & Efficiency with PILOT
Whether you need a note counter, mixed value counter, or advanced sorter, PILOT has a model tailored to your needs. Backed by high-end technology and strong build quality, these machines help businesses save time, reduce human error, and detect fraudulent currency instantly.
📩 Explore our complete catalogue or contact our team for expert guidance.
Frequently Asked Questions
1. What is the main advantage of using PILOT currency counters?
PILOT currency counters not only count notes quickly but also offer automatic counterfeit detection using IR, UV, and MG sensors, ensuring your business handles only legitimate currency.
2. Can PILOT counters handle mixed denominations?
Yes, models like the CV-70 can count mixed denominations and even sort them automatically, making them ideal for banks and large retailers.
3. How fast are PILOT currency counters?
PILOT currency counters such as the C-10 UV/MG can process more than 1000 notes per minute, significantly reducing the time spent on cash handling.
4. Are the machines compatible with different currencies?
Yes, the PILOT-2101 Currency Sorter can handle a wide range of currencies, including USD, EUR, GBP, and INR, making it versatile for global operations.
5. What kind of maintenance do these machines require?
PILOT machines are designed for low maintenance. Regular dusting and occasional software updates (on models like CV-70) will ensure optimal performance.
